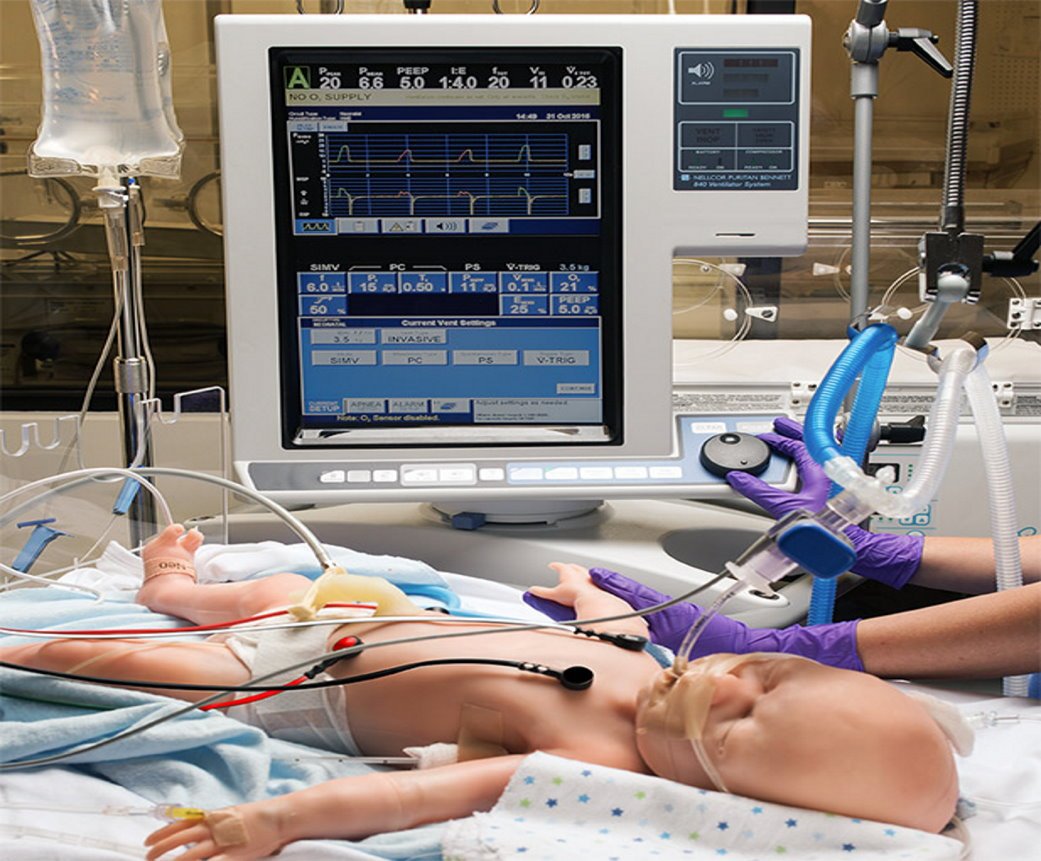

Product Name    Advanced Newborn Patient Simulator

Product Ref.                Super Tory® S2220

General

  • Age: Full-term newborn
  • Weight: 8 lbs.
  • Length: 21 in.
  • Tetherless and wireless; fully responsive during transport
  • Wireless control at distances up to 300 Ft. (100 m) RF / 33 Ft. (10m) Bluetooth.
  • Internal rechargeable battery provides up to 8 hr. of tetherless operation
  • Smooth and supple full- body skin with seamless trunk and limb joints
  • Programmable movement: blinking, mouth open and close, arm and legflexion and extension
  • Realistic joint articulation: neck, shoulder, elbow, hip, and knee
  • Forearm pronation and supination
  • Lifelike umbilicus and post cord detachment navel
  • Palpable bony landmarks
  • Near-silent operation
  • NOELLE® Fetus-Newborn wireless link capability
  • Tablet PC preloaded with UNI® included
  • OMNI®2 ready

Neurologic

  • Crying/grunting with visible mouth movement
  • Blinking eyes
  • Seizures/convulsions
  • Programmable muscle tone: active, reduced, and limp

Airway

  • Anatomically accurate oral cavity and airway
  • Nasotracheal/orotracheal intubation (ETT, laryngeal airway)
  • Head tilt, chin lift, jaw thrust
  • Supports esophageal intubation
  • NG/OG tube placement
  • Bag-valve-mask ventilation support
  • Neck hyperextension and flexion airway obstruction with event capture and logging
  • Intubation depth detection and software event log

Breathing

  • Spontaneous, continuous breathing
  • Variable respiratory rates and inspiratory/ expiratory ratios
  • Programmable unilateral chest rise and fall
  • Unilateral lung sounds synchronized with respiratory rate
  • Programmable retractions, “see-saw” breathing
  • Mechanical ventilation support
  •       A/C, SIMV, CPAP, PCV, PSV, NIPPV
  •      Supports PEEP (up to 20 cmH2O)
  •      Dynamic airway and lung controls
  •      Variable lung compliance

Bilateral bronchi resistance

  • Programmable respiratory efforts for weaning/liberation
  • Unilateral chest rise with right mainstem intubation (Automatic detection and logging)
  • Real-time ventilation feedback
  • Bilateral, midaxillary pneumothorax sites support needle decompression and chest tube insertion
  • Pneumothorax sites feature palpable bony landmarks, realistic skin for cutting and suturing, bleeding, tactile pleural pop, and fluid drain
  • Visible chest rise during bag-valve-mask ventilation
  • Supports EtCO2 monitoring using real sensors and monitoring devices

Circulatory

  • Visible cyanosis, jaundice, paleness, and redness with variable intensities
  • Supports manual capillary refill time assessment on the left foot (Automatic detection and logging)
  • Programmable fontanel: depressed, normal, and bulging
  • Palpable pulses: brachial, femoral, and umbilical
  • Pulse palpation event detection and logging
  • Blood pressure dependent pulses
  • Supports blood pressure monitoring using real NIBP cuff
  • Audible Korotkoff sounds
  • Preductal (right hand) and postductal (right foot) SpO2 monitoring using real devices

Cardiac

  • Includes comprehensive library of ECG rhythms with customizable beat variations
  • Supports ECG monitoring using real devices
  • Supports ECG-derived respiration monitoring (EDR)
  • eCPR™ Real-time quality feedback and reporting
  • Time to CPR
  • Compression depth/rate
  •    Compression interruptions
  •   Ventilation rate
  •    Excessive ventilation

Smart CPR voice coach

  • Chest compression depth sensor
  • Defibrillate, cardiovert, and pace using real devices and energy
  • Effective chest compressions generate palpable femoral pulses and ECG activity
  • Healthy and abnormal heart sounds
  • Supports virtual pacing and defibrillation

Vascular Access

  • IV cannulation: bolus, infusion, and sampling
  • Hand
  • Scalp

Umbilicus

  • Umbilical catheterization (UVC/UAC): continuous infusion and sampling
  • Bilateral IO tibial infusion

Gastrointestinal

  • Programmable abdominal distension
  • Urinary catheterization with return
  • Normal and abnormal bowel sounds
