Product Name            Advanced Mechanical Ventilator

Product Ref.       HAL® S1030

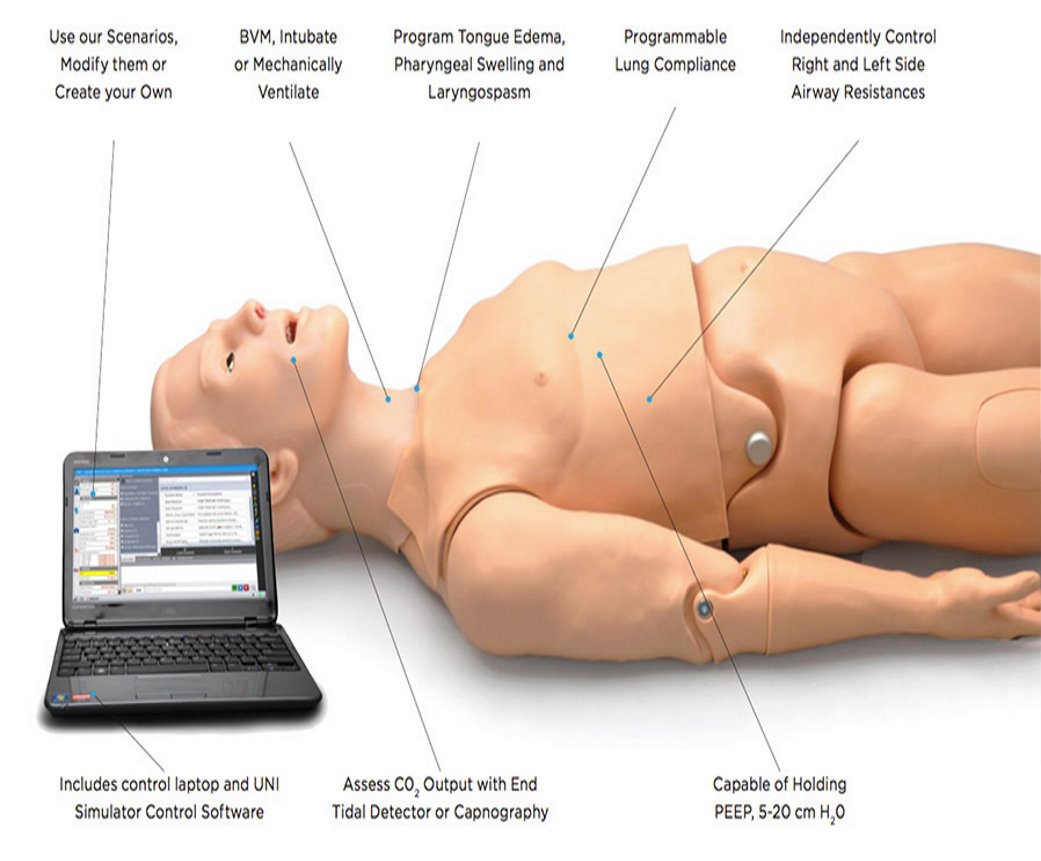

Articulating Adult HAL® full size body

Available in 3 skin tones

Use our scenarios, modify them or create your own

Intubatable and programmable airway

Programmable lung compliance

Independently control right and left side airway resistances

Use in conventional ventilation modes

Capable of assisting the ventilator at variable respiratory rates

Simulate life-threatening auto – PEEP and tension pneumothorax

Exhales real and measurable CO2

Assess CO2 output with end tidal detector or capnography

Vary lung mechanics throughout your entire simulation exercise

Receive real time feedback from real mechanical ventilator



BVM, intubate or mechanically ventilate

Program tongue edema, pharyngeal swelling and laryngospasm

Practice intubation and management of anatomic and pathologic conditions

Ten levels of static compliance, 15-50 ml/ cm H20

Independently controlled airway resistances

Capable of assisting the ventilator at variable respiratory rates

Capable of holding PEEP, 5-20 cm H20

CO2 exhalation

Specify inspiratory time and rate, inspiratory/expiratory ratio

Change lung resistance/compliance “on-the-fly” and see results on a real ventilator which are recorded on the laptop

Pre-programmed airway and lung pathologies including:



Asthma

Chronic Bronchitis

CHF

Emphysema

Pneumothorax



Set Inspiratory Effort Rate to trigger the ventilator

Four anterior and four posterior lung sounds

Use our pre-programmed pathologies or create your own

Create scenarios using our proven, easy to use, HAL® software

Connect our simulator to your REAL ventilator, which can be set by volume or pressure

Includes

  • Laptop with 15 inch display
  • Carrying case with rollers
  • Instruction Manual
  • Other
  • USB connections
  • International power supply 100-240 VAC
